| Mode | Name and Description |
1.0MP AHD Color IR Bullet CCTV Camera |
| ASHA24-B4-10 | ||
| Camera | Media Processor | NVP2431H + OV9712 |
| Image Sensor | 1/4" 1.0MP Progressive Scan CMOS (OV 9712) | |
| Effective Pixels | 1280(H)*720(V) | |
| Video Frame Rate | 720p@25fps/720p@30fps | |
| Signal System | PAL/NTSC | |
| Min. Illumination | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR | |
| Shutter Time | Auto/ 1/50 / (1/60) to 1/10,0000s | |
| Lens | 3.6mm fixed lens | |
| Lens Mount | M12 Mount | |
| Day& Night | Auto,dual IR-cut filter | |
| IR Distance | 20m | |
| S/N Ratio | ≥69dB(AGC OFF) | |
| Video Output | 1ch AHD video output (720P) | |
| Synchronization | Internal Synchronization | |
| Menu | Auto Gain | Low/Middle/High/Off |
| White Balance | AWB/ATW/Indoor/Outdoor/Manual | |
| D-WDR | Support | |
| Noise Reduction | 2D/3D DNR | |
| Private Mask | On/Off | |
| Motion Detection | On/Off | |
| Language | Chinese/English/German/French/Italian/Spanish/polish/Russian/Portuguese/Turkish | |
| Function | Sharpness, Brightness, Defog, Mirror | |
| General Parameters | Power Supply | DC12V |
| Operation Temperature | -20℃ - +50℃ | |
| Operation Humidity | Less than 95%RH(no condensation) | |
| Weather Proof Rating | IP66 | |
| Installation | Equipped With Bracket | |

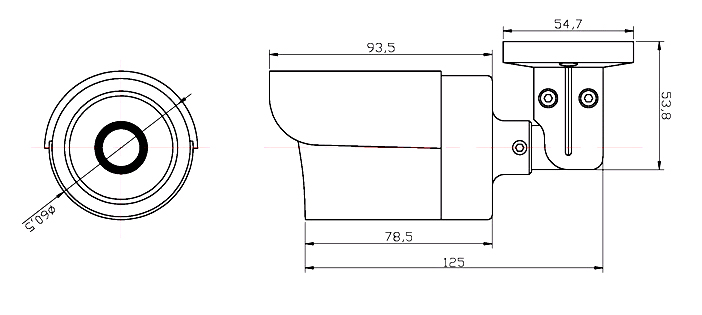

| Dimension | 172*65*62mm | |
| Weight | 0.48Kg |
